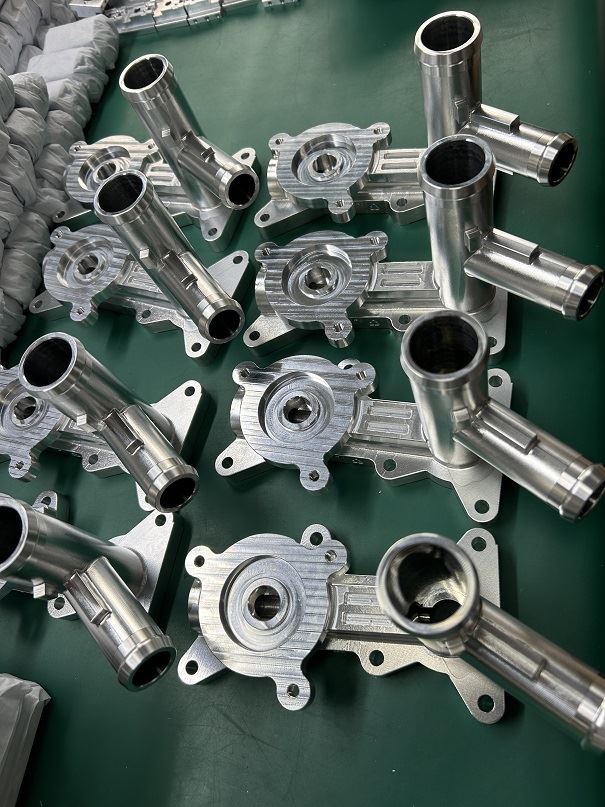

This CNC integrated pump housing is specially developed for automotive cooling circuits, industrial fluid circulation pumps and new energy thermal management systems. It is fully processed from solid aluminum alloy via 5-axis CNC milling. The part owns ultra-tight dimensional tolerances, excellent sealing performance and high structural rigidity, perfectly matching precision fluid delivery equipment.
Advanced CNC Manufacturing Technology
Comparison with Conventional Separate Welding Machining
| Feature | Traditional Welded Pump Housing | Our Integrated CNC Machined Solution |
|---|---|---|
| Machining Process | Split parts + welding + secondary finishing | Single blank one-time CNC composite milling |
| Dimensional Accuracy | Welding deformation leads to big tolerance fluctuation | Closed-loop CNC control, micron-level precision |
| Structural Leak Risk | Weld seams are prone to coolant leakage | No splicing gaps, integrated flow channel |
| Surface Quality | Weld traces, uneven surface | Consistent smooth milling texture, clean sealing plane |
| Batch Consistency | Welding manual difference affects uniformity | Stable batch production, consistent each piece |
| Service Life | Weld joint fatigue failure under long-term hydraulic pressure | Integral structure, anti-vibration & long service life |
Why Choose Our CNC Aluminum Pump Housing?
Product Advantage Comparison
| Comparison Item | Our Product | Ordinary General Supplier |
|---|---|---|
| Raw Material | High-strength 6061/6063 aerospace aluminum alloy | Recycled mixed aluminum raw material |
| Machining Precision | CMM full detection, strict fluid interface tolerance control | Only simple size spot check, loose sealing surface tolerance |
| Structural Design | Reinforced flange mounting lugs, anti-pressure optimized flow channel wall | Thin wall ordinary structure, easy deformation under hydraulic pressure |
| Surface Finish | High-speed finish milling, low roughness sealing surface | Rough ordinary milling, obvious tool marks |
| Customization Support | Full OEM/ODM: adjust flow channel, pipe diameter, mounting hole position | Only fixed standard models, difficult secondary modification |
| Quality Control | 100% full dimensional inspection + air tightness leak test | Random sampling inspection, no hydraulic leak test |
Product Application Scenarios
| Industry Field | Specific Application |
|---|---|
| New Energy Automobile | EV battery cooling pump housing, motor water circulation pump body |
| Automotive Thermal Management | Vehicle cooling system, electronic water pump assembly parts |
| Industrial Fluid Equipment | Small circulation pump, hydraulic auxiliary pump, precision valve body |
| Medical Liquid Equipment | Medical circulating liquid pump, laboratory precision fluid delivery module |
| Automation Cooling Equipment | Servo motor cooling, industrial equipment heat exchange pump housing |
| Environmental Water Treatment | Mini fluid circulation pump, micro water pump precision housing |
1. Lightweight & High Rigidity Integrated Flow Channel Structure: Integrated multi-way pipeline, reduce pipe fitting accessories, Excellent thermal conductivity, accelerate heat exchange efficiency
2. Ultra-Precision Sealing Mating Surfaces: Effectively prevent liquid coolant leakage under working pressure , Stable long-cycle operation without loosening , Reduce after-sales maintenance cost of fluid equipment
3. Complex Multi-Axis Composite Machining Features: Distributed mounting flange holes & positioning pin holes , Internal step flow channels, thread holes, sealing grooves
